Top Features:
Multi-Chemistry
Powerful & Accurate
Compact Display with 128×64
Rich User Interface
Easy Programmability
Secure Stand
No-nonsense Modes
Maximum Safety
APP Control
PC Control
Maximum Battery Support
Multi-Chemistry because supports 7+ battery chemistries:
NiMH
Eneloop
LiIo4.35
NiZn
NiCd
Lithium-Ion
LiFePO4
Support more than 42 battery sizes like:
AAAA
AAA
AA
Sub-C
C
RCR123
and many more
Powerful and Accurate
Battery Type: NiMH / NiCd / NiZn / Eneloop
Charge current: Max. 3A (x4 slots)
Discharge current: Max. 2A (x4 slots)
Internal Accuracy**
(calibrated w/ accurate calibration source)
Voltage: < |±2mV|
Current: < |±2mA|
Battery Type: Lithium-Ion / LiIo4.35 / LiFePO4
Charge current: Max. 3A (x4 slots)
Discharge current: Max. 2A (x1 slot)
Max. 1A (x4 slots)
Display Resolution
Voltage: 0.01V
Current: 0.01A
Effective Cooling
The built-in aluminum cooler effectively dissipates heat generated in the inside of the charger to the environment, even at slow fan speed.

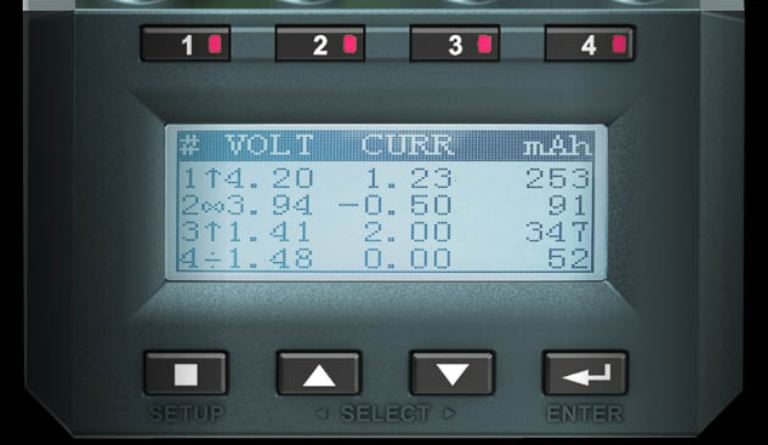

Compact Display
The 128×64 pixels screen shows 5 different views during operation, see above a picture of Total Overview (TOV).
Rich User Interface
Eight Buttons for easy programming and operation. Four Slot Number Buttons (SNB) help to address the different slots. The other four buttons are for programming and operation.
Easy Programmability
In Simple and Advanced UI modes, the charger operates off 30 user-defined operation profiles. The programs can be called up and run with few clicks, very conveniently.
Secure Stand
Rubber feet and strong tilt stand elements provide a firm stand. Tilted position enhances viewing angle and cooling air flow at the bottom side.

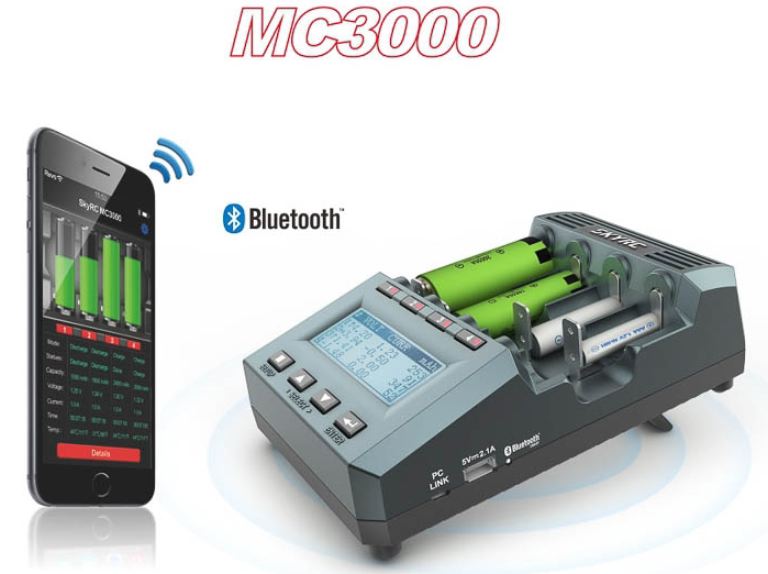

APP Control
Bluetooth BLE 4.0 technique enables user to operate the charger and view real time data and graphs via mobile application.
PC Control
User can use PC Link software to control the charger, view real time data with graphs, and also update the charger firmware through it.
No-nonsense Modes
There are total 6 operation modes (‘Break_in’ for NiMH/NiCd/Eneloop batteries only, ‘Storage’ for Li-Chemistry batteries only).
Charge: Charge the battery at the selected rate. Suitable for frequently used batteries.
Discharge: Discharge the batteries at the selected rate.
Refresh Analyze: Suitable for batteries stored for more than two weeks but less than 3 months or the batteries showing poor performance. This mode can also determine the battery capacity for battery matching.
Break-In: Battery forming is a charge-discharge-charge cycle which forces a full charge into the new batteries and those stored for more than 3 months at a very low rate to activate the batteries.
Cycle: Performs charge-dicharge cycle for up to 99 times. Cycle mode can remove memory effect of rechargeable batteries.
Storage: Charge/Discharge a lithium battery to a voltage which is, theoretically, better for storing a long time while maintaining the maximum of its lifespan.
Maximum Safety
Current Limit
Capacity Limit
Temperature Threshold
Charging Time Limit
