BARILOTTO SX 4 gradi ECS T4 SINISTRO IN GRAFITE – HUD302384

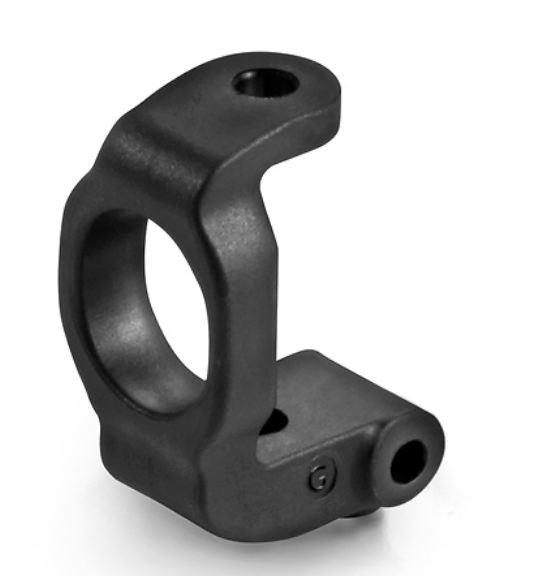

Molded composite C-hub for left steering block. The inside hole was enlarged to allow to use new extra stong ECS driveshafts. Caster pre-set at 4°. Made from specially-formulated graphite composite material with EXTRA-HARD rigidity for rubber-tire racing and also foam tire racing. Use with matching right-side C-hub #302383.

C-hub has large openings for quick & easy CVD and ECS assembly/disassembly. The entire CVD and ECS assembly can be easily inserted/removed through the C-hub without disassembly. The large openings prevent collision of CVD and ECS with C-hub in serious crashes, and are designed for use with optional ECS drive shafts.

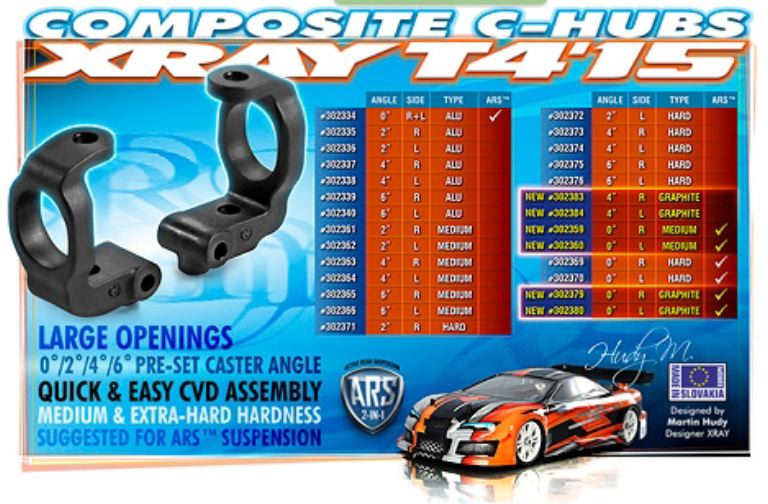

The C-hubs are available in all standard caster angles (0°, 2°, 4° and 6°) and are also available in 2 different hardnesses (Medium, Graphite) for different racing conditions.

Fits XRAY T2
XRAY T2R
XRAY T2 007 US Foam-Spec Edition
XRAY T2 007 EU Rubber-Spec Edition
XRAY T2 008 EU Rubber-Spec 5-Cell Edition
XRAY T2 008 EU Rubber-Spec 6-Cell Edition
XRAY T2 008 US Foam-Spec 6-Cell Edition
XRAY T2 009 EU Rubber-Spec 6-Cell Edition
XRAY T2 009 US Foam-Spec 6-Cell Edition
XRAY T2R PRO
XRAY T3 EU Rubber-Spec Edition
XRAY T3 US Foam-Spec Edition
XRAY T3R
XRAY T3 2011 Specs
XRAY T3 2012 Specs
XRAY T4
XRAY T4 2014 Specs
XRAY T4 2015 Specs

Barcode 8581703023845
